Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Explosion safety category for gasNone
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Type of interface for safety communicationNone
Material housingMetal
Construction type housingCuboid
Degree of protection (IP)IP67
Coating housingPowder coating
Suitable for safety functionsNo
Switching functionQuick-break switch
With status indicationNo
Type of electric connectionWith cable preassembled
Explosion safety category for dustNone
Forced openingNo
Number of safety auxiliary contacts0
Type of control elementPlunger
Rated operation current Ie at AC-15, 125 V5.5A
Output electronicNo
Type of interfaceNone
Rated operation current Ie at DC-13, 125 V0.55A
Length of sensor16mm
Degree of protection (NEMA)6
Rated operation current Ie at DC-13, 24 V2.8A
Height of sensor70mm
Rated operation current Ie at AC-15, 24 V10A
Diameter sensor0mm
Width sensor30mm
Alignment of the control elementOther
Switching function latchingNo
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

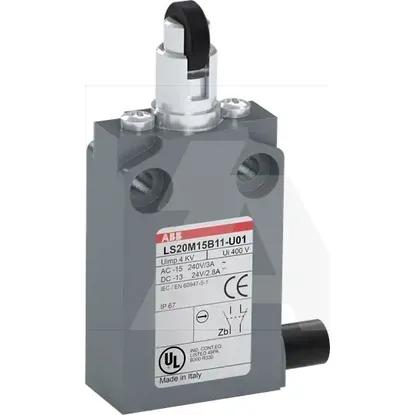

1SBV015515R2601 | LS20M15B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Explosion safety category for gas
None
Rated operation current Ie at DC-13, 230 V
0.27A
Rated operation current Ie at AC-15, 230 V
3A
Type of interface for safety communication
None
Material housing
Metal
Construction type housing
Cuboid
Degree of protection (IP)
IP67
Coating housing
Powder coating
Suitable for safety functions
Switching function
Quick-break switch
With status indication
Type of electric connection
With cable preassembled
Explosion safety category for dust
None
Forced opening
Number of safety auxiliary contacts
0
Type of control element
Plunger
Rated operation current Ie at AC-15, 125 V
5.5A
Output electronic
Type of interface
None
Rated operation current Ie at DC-13, 125 V
0.55A
Length of sensor
16mm
Degree of protection (NEMA)
6
Rated operation current Ie at DC-13, 24 V
2.8A
Height of sensor
70mm
Rated operation current Ie at AC-15, 24 V
10A
Diameter sensor
0mm
Width sensor
30mm
Alignment of the control element
Other
Switching function latching
Ambient temperature during operating
-25 .. 70°C
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
