Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Switching functionQuick-break switch
Suitable for safety functionsNo
With status indicationNo
Type of electric connectionWith cable preassembled
Coating housingPowder coating
Type of interface for safety communicationNone
Number of safety auxiliary contacts0
Forced openingNo
Construction type housingCuboid
Rated operation current Ie at AC-15, 24 V10A
Output electronicNo
Explosion safety category for gasNone
Type of interfaceNone
Degree of protection (IP)IP67
Type of control elementPlunger
Material housingMetal
Explosion safety category for dustNone
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at DC-13, 24 V2.8A
Height of sensor74mm
Width sensor30mm
Switching function latchingNo
Diameter sensor0mm
Length of sensor16mm
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Alignment of the control elementOther
Number of contacts as change-over contact0
Number of contacts as normally closed contact1
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

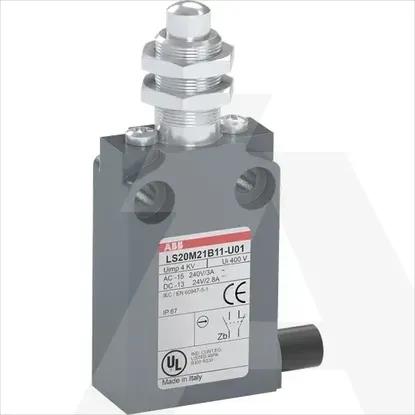

1SBV015521R2601 | LS20M21B11-U01
