Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Type of control elementPlunger
Number of safety auxiliary contacts0
Type of interface for safety communicationNone
With status indicationNo
Type of electric connectionWith cable preassembled
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Suitable for safety functionsNo
Explosion safety category for dustNone
Switching functionQuick-break switch
Forced openingNo
Coating housingPowder coating
Explosion safety category for gasNone
Degree of protection (IP)IP67
Material housingMetal
Construction type housingCuboid
Output electronicNo
Diameter sensor0mm
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at DC-13, 125 V0.55A
Width sensor30mm
Rated operation current Ie at AC-15, 24 V10A
Type of interfaceNone
Rated operation current Ie at DC-13, 24 V2.8A
Alignment of the control elementOther
Number of contacts as normally open contact1
Ambient temperature during operating-25 - 70°C
Switching function latchingNo
Length of sensor16mm
Height of sensor85mm
Number of contacts as change-over contact0
Number of contacts as normally closed contact1
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

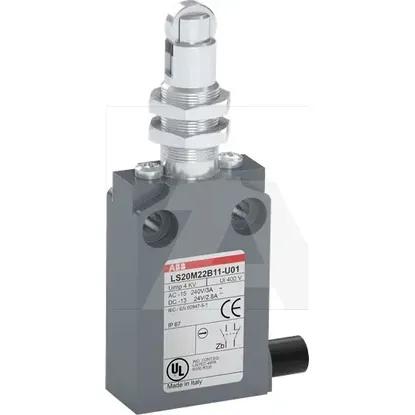

1SBV015522R2601 | LS20M22B11-U01
