Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
With status indicationNo
Explosion safety category for gasNone
Material housingMetal
Type of interface for safety communicationNone
Construction type housingCuboid
Type of electric connectionWith cable preassembled
Switching functionQuick-break switch
Explosion safety category for dustNone
Suitable for safety functionsNo
Coating housingPowder coating
Rated operation current Ie at AC-15, 125 V5.5A
Number of safety auxiliary contacts0
Type of control elementPlunger
Type of interfaceNone
Output electronicNo
Degree of protection (IP)IP67
Forced openingNo
Length of sensor16mm
Rated operation current Ie at AC-15, 24 V10A
Width sensor30mm
Rated operation current Ie at DC-13, 125 V0.55A
Height of sensor85mm
Diameter sensor0mm
Rated operation current Ie at DC-13, 24 V2.8A
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Switching function latchingNo
Number of contacts as change-over contact0
Alignment of the control elementOther
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

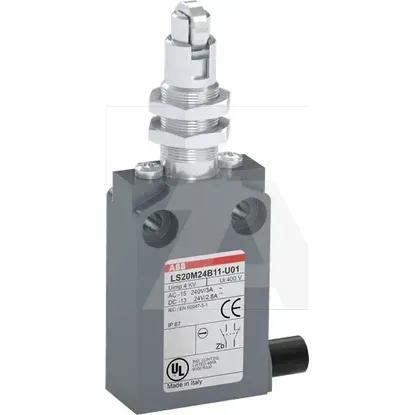

1SBV015524R2601 | LS20M24B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at DC-13, 230 V
0.27A
Rated operation current Ie at AC-15, 230 V
3A
With status indication
Explosion safety category for gas
None
Material housing
Metal
Type of interface for safety communication
None
Construction type housing
Cuboid
Type of electric connection
With cable preassembled
Switching function
Quick-break switch
Explosion safety category for dust
None
Suitable for safety functions
Coating housing
Powder coating
Rated operation current Ie at AC-15, 125 V
5.5A
Number of safety auxiliary contacts
0
Type of control element
Plunger
Type of interface
None
Output electronic
Degree of protection (IP)
IP67
Forced opening
Length of sensor
16mm
Rated operation current Ie at AC-15, 24 V
10A
Width sensor
30mm
Rated operation current Ie at DC-13, 125 V
0.55A
Height of sensor
85mm
Diameter sensor
0mm
Rated operation current Ie at DC-13, 24 V
2.8A
Ambient temperature during operating
-25 .. 70°C
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Switching function latching
Number of contacts as change-over contact
0
Alignment of the control element
Other
Degree of protection (NEMA)
6
