Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Suitable for safety functionsNo
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Switching functionQuick-break switch
Material housingMetal
Coating housingPowder coating
With status indicationNo
Type of interface for safety communicationNone
Type of electric connectionWith cable preassembled
Construction type housingCuboid
Explosion safety category for gasNone
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 125 V5.5A
Forced openingNo
Alignment of the control elementOther
Degree of protection (IP)IP67
Type of control elementPlunger
Type of interfaceNone
Height of sensor92mm
Rated operation current Ie at DC-13, 125 V0.55A
Number of safety auxiliary contacts0
Degree of protection (NEMA)6
Rated operation current Ie at DC-13, 24 V2.8A
Number of contacts as normally open contact1
Switching function latchingNo
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Output electronicNo
Ambient temperature during operating-25 - 70°C
Rated operation current Ie at AC-15, 24 V10A
Length of sensor29mm
Diameter sensor0mm
Width sensor30mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

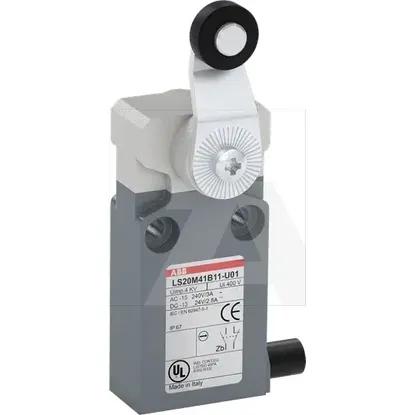

1SBV015541R2601 | LS20M41B11-U01
