Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Coating housingPowder coating
Suitable for safety functionsNo
Switching functionQuick-break switch
With status indicationNo
Type of electric connectionWith cable preassembled
Material housingMetal
Type of interface for safety communicationNone
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Degree of protection (IP)IP67
Rated operation current Ie at AC-15, 125 V5.5A
Number of safety auxiliary contacts0
Type of control elementPlunger
Explosion safety category for dustNone
Type of interfaceNone
Output electronicNo
Construction type housingCuboid
Forced openingNo
Explosion safety category for gasNone
Length of sensor16mm
Diameter sensor0mm
Ambient temperature during operating-25 - 70°C
Width sensor30mm
Switching function latchingNo
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 125 V0.55A
Number of contacts as normally open contact1
Height of sensor92mm
Rated operation current Ie at DC-13, 24 V2.8A
Number of contacts as normally closed contact1
Alignment of the control elementOther
Degree of protection (NEMA)6
Number of contacts as change-over contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

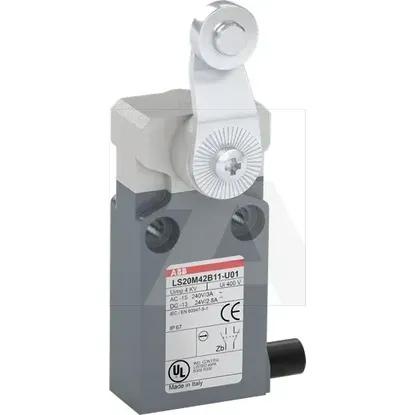

1SBV015542R2601 | LS20M42B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Coating housing
Powder coating
Suitable for safety functions
Switching function
Quick-break switch
With status indication
Type of electric connection
With cable preassembled
Material housing
Metal
Type of interface for safety communication
None
Rated operation current Ie at DC-13, 230 V
0.27A
Rated operation current Ie at AC-15, 230 V
3A
Degree of protection (IP)
IP67
Rated operation current Ie at AC-15, 125 V
5.5A
Number of safety auxiliary contacts
0
Type of control element
Plunger
Explosion safety category for dust
None
Type of interface
None
Output electronic
Construction type housing
Cuboid
Forced opening
Explosion safety category for gas
None
Length of sensor
16mm
Diameter sensor
0mm
Ambient temperature during operating
-25 .. 70°C
Width sensor
30mm
Switching function latching
Rated operation current Ie at AC-15, 24 V
10A
Rated operation current Ie at DC-13, 125 V
0.55A
Number of contacts as normally open contact
1
Height of sensor
92mm
Rated operation current Ie at DC-13, 24 V
2.8A
Number of contacts as normally closed contact
1
Alignment of the control element
Other
Degree of protection (NEMA)
6
Number of contacts as change-over contact
0
