Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Material housingMetal
Rated operation current Ie at DC-13, 230 V0.27A
Coating housingPowder coating
With status indicationNo
Rated operation current Ie at AC-15, 230 V3A
Type of interface for safety communicationNone
Suitable for safety functionsNo
Degree of protection (IP)IP67
Explosion safety category for dustNone
Type of control elementPlunger
Forced openingNo
Explosion safety category for gasNone
Number of safety auxiliary contacts0
Construction type housingCuboid
Type of electric connectionWith cable preassembled
Diameter sensor0mm
Rated operation current Ie at DC-13, 24 V2.8A
Height of sensor102mm
Degree of protection (NEMA)6
Width sensor30mm
Type of interfaceNone
Rated operation current Ie at DC-13, 125 V0.55A
Switching function latchingNo
Number of contacts as normally open contact1
Rated operation current Ie at AC-15, 125 V5.5A
Length of sensor16mm
Output electronicNo
Rated operation current Ie at AC-15, 24 V10A
Number of contacts as normally closed contact1
Alignment of the control elementOther
Number of contacts as change-over contact0
Ambient temperature during operating-25 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

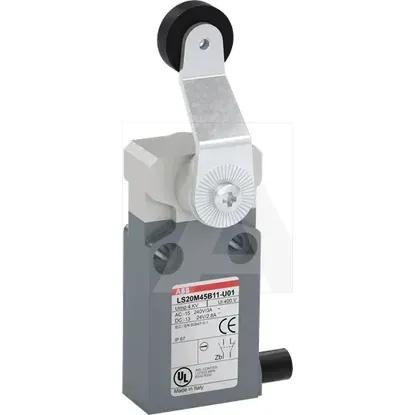

1SBV015545R2601 | LS20M45B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Switching function
Quick-break switch
Material housing
Metal
Rated operation current Ie at DC-13, 230 V
0.27A
Coating housing
Powder coating
With status indication
Rated operation current Ie at AC-15, 230 V
3A
Type of interface for safety communication
None
Suitable for safety functions
Degree of protection (IP)
IP67
Explosion safety category for dust
None
Type of control element
Plunger
Forced opening
Explosion safety category for gas
None
Number of safety auxiliary contacts
0
Construction type housing
Cuboid
Type of electric connection
With cable preassembled
Diameter sensor
0mm
Rated operation current Ie at DC-13, 24 V
2.8A
Height of sensor
102mm
Degree of protection (NEMA)
6
Width sensor
30mm
Type of interface
None
Rated operation current Ie at DC-13, 125 V
0.55A
Switching function latching
Number of contacts as normally open contact
1
Rated operation current Ie at AC-15, 125 V
5.5A
Length of sensor
16mm
Output electronic
Rated operation current Ie at AC-15, 24 V
10A
Number of contacts as normally closed contact
1
Alignment of the control element
Other
Number of contacts as change-over contact
0
Ambient temperature during operating
-25 .. 70°C
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
