Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Explosion safety category for gasNone
Material housingMetal
Rated operation current Ie at AC-15, 230 V3A
Type of interface for safety communicationNone
Type of electric connectionWith cable preassembled
Suitable for safety functionsNo
Rated operation current Ie at DC-13, 230 V0.27A
Switching functionQuick-break switch
Coating housingPowder coating
With status indicationNo
Explosion safety category for dustNone
Construction type housingCuboid
Degree of protection (IP)IP67
Forced openingNo
Rated operation current Ie at AC-15, 24 V10A
Diameter sensor0mm
Rated operation current Ie at AC-15, 125 V5.5A
Height of sensor130mm
Switching function latchingNo
Type of interfaceNone
Type of control elementPlunger
Number of safety auxiliary contacts0
Ambient temperature during operating-25 - 70°C
Rated operation current Ie at DC-13, 24 V2.8A
Width sensor30mm
Number of contacts as normally closed contact1
Length of sensor35mm
Number of contacts as change-over contact0
Alignment of the control elementOther
Degree of protection (NEMA)6
Number of contacts as normally open contact1
Rated operation current Ie at DC-13, 125 V0.55A
Output electronicNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

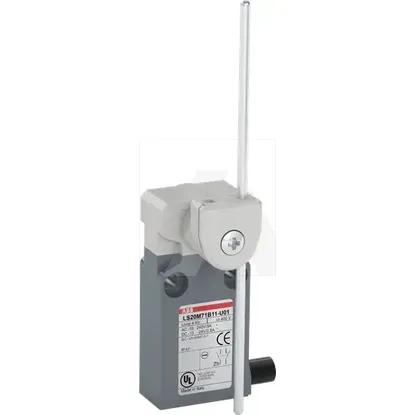

1SBV015571R2601 | LS20M71B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Explosion safety category for gas
None
Material housing
Metal
Rated operation current Ie at AC-15, 230 V
3A
Type of interface for safety communication
None
Type of electric connection
With cable preassembled
Suitable for safety functions
Rated operation current Ie at DC-13, 230 V
0.27A
Switching function
Quick-break switch
Coating housing
Powder coating
With status indication
Explosion safety category for dust
None
Construction type housing
Cuboid
Degree of protection (IP)
IP67
Forced opening
Rated operation current Ie at AC-15, 24 V
10A
Diameter sensor
0mm
Rated operation current Ie at AC-15, 125 V
5.5A
Height of sensor
130mm
Switching function latching
Type of interface
None
Type of control element
Plunger
Number of safety auxiliary contacts
0
Ambient temperature during operating
-25 .. 70°C
Rated operation current Ie at DC-13, 24 V
2.8A
Width sensor
30mm
Number of contacts as normally closed contact
1
Length of sensor
35mm
Number of contacts as change-over contact
0
Alignment of the control element
Other
Degree of protection (NEMA)
6
Number of contacts as normally open contact
1
Rated operation current Ie at DC-13, 125 V
0.55A
Output electronic
