Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
With status indicationNo
Rated operation current Ie at DC-13, 230 V0.27A
Suitable for safety functionsNo
Switching functionQuick-break switch
Type of interface for safety communicationNone
Coating housingPowder coating
Material housingMetal
Type of electric connectionWith cable preassembled
Number of safety auxiliary contacts0
Explosion safety category for dustNone
Forced openingNo
Explosion safety category for gasNone
Degree of protection (IP)IP67
Construction type housingCuboid
Width sensor30mm
Type of control elementPlunger
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 24 V10A
Output electronicNo
Type of interfaceNone
Rated operation current Ie at DC-13, 24 V2.8A
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at AC-15, 230 V3A
Number of contacts as normally open contact1
Height of sensor182mm
Switching function latchingNo
Number of contacts as normally closed contact1
Length of sensor16mm
Ambient temperature during operating-25 - 70°C
Alignment of the control elementOther
Degree of protection (NEMA)6
Diameter sensor0mm
Number of contacts as change-over contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

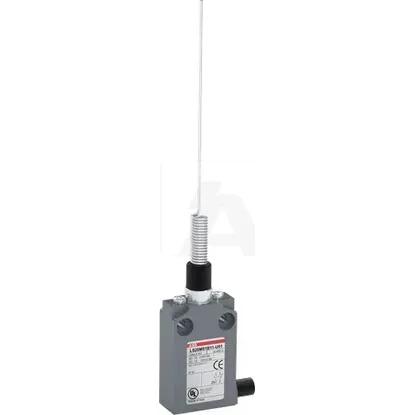

1SBV015591R2601 | LS20M91B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
With status indication
Rated operation current Ie at DC-13, 230 V
0.27A
Suitable for safety functions
Switching function
Quick-break switch
Type of interface for safety communication
None
Coating housing
Powder coating
Material housing
Metal
Type of electric connection
With cable preassembled
Number of safety auxiliary contacts
0
Explosion safety category for dust
None
Forced opening
Explosion safety category for gas
None
Degree of protection (IP)
IP67
Construction type housing
Cuboid
Width sensor
30mm
Type of control element
Plunger
Rated operation current Ie at DC-13, 125 V
0.55A
Rated operation current Ie at AC-15, 24 V
10A
Output electronic
Type of interface
None
Rated operation current Ie at DC-13, 24 V
2.8A
Rated operation current Ie at AC-15, 125 V
5.5A
Rated operation current Ie at AC-15, 230 V
3A
Number of contacts as normally open contact
1
Height of sensor
182mm
Switching function latching
Number of contacts as normally closed contact
1
Length of sensor
16mm
Ambient temperature during operating
-25 .. 70°C
Alignment of the control element
Other
Degree of protection (NEMA)
6
Diameter sensor
0mm
Number of contacts as change-over contact
0
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
