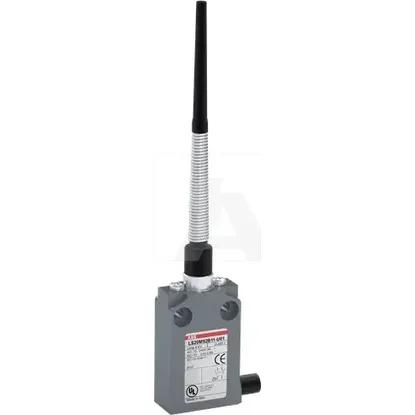

Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Coating housingPowder coating
Material housingMetal
Type of interface for safety communicationNone
Suitable for safety functionsNo
Type of electric connectionWith cable preassembled
Rated operation current Ie at DC-13, 230 V0.27A
With status indicationNo
Explosion safety category for dustNone
Forced openingNo
Construction type housingCuboid
Explosion safety category for gasNone
Number of safety auxiliary contacts0
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 24 V2.8A
Rated operation current Ie at DC-13, 125 V0.55A
Degree of protection (NEMA)6
Type of interfaceNone
Type of control elementPlunger
Ambient temperature during operating-25 - 70°C
Number of contacts as change-over contact0
Number of contacts as normally open contact1
Switching function latchingNo
Diameter sensor0mm
Rated operation current Ie at AC-15, 125 V5.5A
Number of contacts as normally closed contact1
Output electronicNo
Length of sensor16mm
Alignment of the control elementOther
Degree of protection (IP)IP67
Width sensor30mm
Height of sensor162mm
