Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 125 V0.55A
With status indicationNo
Type of electric connectionWith cable preassembled
Coating housingPowder coating
Type of interfaceNone
Type of control elementPlunger
Number of safety auxiliary contacts0
Explosion safety category for gasNone
Suitable for safety functionsNo
Material housingMetal
Forced openingNo
Rated operation current Ie at AC-15, 125 V5.5A
Type of interface for safety communicationNone
Output electronicNo
Rated operation current Ie at DC-13, 24 V2.8A
Explosion safety category for dustNone
Degree of protection (IP)IP67
Construction type housingCuboid
Diameter sensor0mm
Height of sensor70mm
Number of contacts as change-over contact0
Number of contacts as normally closed contact1
Length of sensor16mm
Number of contacts as normally open contact1
Ambient temperature during operating-25 - 70°C
Switching function latchingNo
Alignment of the control elementOther
Degree of protection (NEMA)6
Width sensor30mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

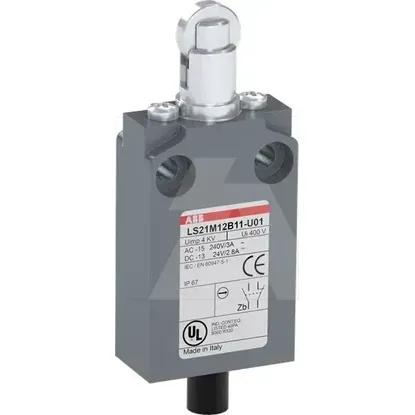

1SBV015612R2601 | LS21M12B11-U01
