Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 230 V0.27A
With status indicationNo
Type of electric connectionWith cable preassembled
Type of interface for safety communicationNone
Material housingMetal
Coating housingPowder coating
Suitable for safety functionsNo
Explosion safety category for gasNone
Number of safety auxiliary contacts0
Explosion safety category for dustNone
Construction type housingCuboid
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at AC-15, 125 V5.5A
Width sensor30mm
Forced openingNo
Rated operation current Ie at DC-13, 24 V2.8A
Type of control elementPlunger
Diameter sensor0mm
Degree of protection (IP)IP67
Output electronicNo
Type of interfaceNone
Height of sensor70mm
Degree of protection (NEMA)6
Number of contacts as normally open contact1
Length of sensor16mm
Alignment of the control elementOther
Ambient temperature during operating-25 - 70°C
Number of contacts as normally closed contact1
Switching function latchingNo
Number of contacts as change-over contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

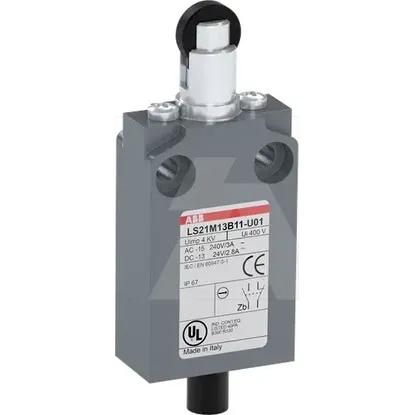

1SBV015613R2601 | LS21M13B11-U01
