Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Coating housingPowder coating
Material housingMetal
Rated operation current Ie at AC-15, 230 V3A
Degree of protection (IP)IP67
Forced openingNo
Rated operation current Ie at DC-13, 230 V0.27A
Type of electric connectionWith cable preassembled
Construction type housingCuboid
With status indicationNo
Type of control elementPlunger
Explosion safety category for dustNone
Number of safety auxiliary contacts0
Type of interface for safety communicationNone
Explosion safety category for gasNone
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at AC-15, 125 V5.5A
Type of interfaceNone
Output electronicNo
Length of sensor16mm
Rated operation current Ie at DC-13, 125 V0.55A
Height of sensor70mm
Suitable for safety functionsNo
Width sensor30mm
Diameter sensor0mm
Rated operation current Ie at DC-13, 24 V2.8A
Number of contacts as change-over contact0
Degree of protection (NEMA)6
Number of contacts as normally open contact1
Ambient temperature during operating-25 - 70°C
Switching function latchingNo
Number of contacts as normally closed contact1
Alignment of the control elementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

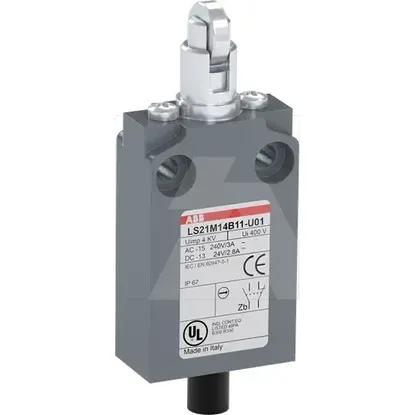

1SBV015614R2601 | LS21M14B11-U01
