Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Suitable for safety functionsNo
Type of interface for safety communicationNone
Material housingMetal
With status indicationNo
Coating housingPowder coating
Explosion safety category for gasNone
Number of safety auxiliary contacts0
Output electronicNo
Degree of protection (IP)IP67
Type of control elementPlunger
Construction type housingCuboid
Explosion safety category for dustNone
Type of interfaceNone
Forced openingNo
Type of electric connectionWith cable preassembled
Ambient temperature during operating-25 - 70°C
Number of contacts as normally closed contact1
Length of sensor16mm
Height of sensor70mm
Switching function latchingNo
Alignment of the control elementOther
Width sensor30mm
Degree of protection (NEMA)6
Rated operation current Ie at AC-15, 125 V5.5A
Number of contacts as normally open contact1
Rated operation current Ie at DC-13, 125 V0.55A
Number of contacts as change-over contact0
Rated operation current Ie at AC-15, 24 V10A
Diameter sensor0mm
Rated operation current Ie at DC-13, 24 V2.8A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

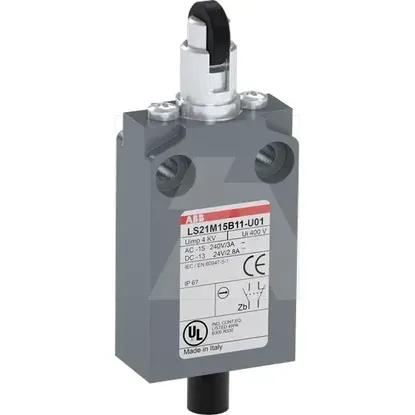

1SBV015615R2601 | LS21M15B11-U01
