Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at DC-13, 230 V0.27A
Type of electric connectionWith cable preassembled
Type of interface for safety communicationNone
Rated operation current Ie at AC-15, 230 V3A
With status indicationNo
Coating housingPowder coating
Explosion safety category for gasNone
Suitable for safety functionsNo
Material housingMetal
Explosion safety category for dustNone
Construction type housingCuboid
Degree of protection (IP)IP67
Number of safety auxiliary contacts0
Type of control elementPlunger
Rated operation current Ie at AC-15, 24 V10A
Type of interfaceNone
Rated operation current Ie at AC-15, 125 V5.5A
Width sensor30mm
Number of contacts as normally closed contact1
Forced openingNo
Output electronicNo
Switching function latchingNo
Ambient temperature during operating-25 - 70°C
Number of contacts as change-over contact0
Diameter sensor0mm
Height of sensor74mm
Number of contacts as normally open contact1
Rated operation current Ie at DC-13, 125 V0.55A
Length of sensor16mm
Rated operation current Ie at DC-13, 24 V2.8A
Degree of protection (NEMA)6
Alignment of the control elementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

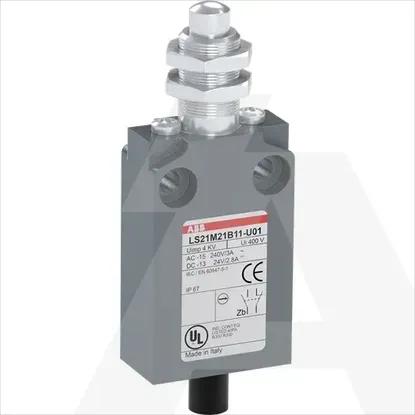

1SBV015621R2601 | LS21M21B11-U01
