Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Coating housingPowder coating
Material housingMetal
Construction type housingCuboid
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 230 V0.27A
Suitable for safety functionsNo
Forced openingNo
Type of interface for safety communicationNone
Degree of protection (IP)IP67
Explosion safety category for dustNone
With status indicationNo
Type of electric connectionWith cable preassembled
Explosion safety category for gasNone
Width sensor30mm
Rated operation current Ie at AC-15, 24 V10A
Diameter sensor0mm
Number of safety auxiliary contacts0
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at DC-13, 125 V0.55A
Type of control elementPlunger
Type of interfaceNone
Output electronicNo
Rated operation current Ie at DC-13, 24 V2.8A
Switching function latchingNo
Number of contacts as normally open contact1
Ambient temperature during operating-25 - 70°C
Height of sensor85mm
Number of contacts as change-over contact0
Length of sensor16mm
Degree of protection (NEMA)6
Number of contacts as normally closed contact1
Alignment of the control elementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

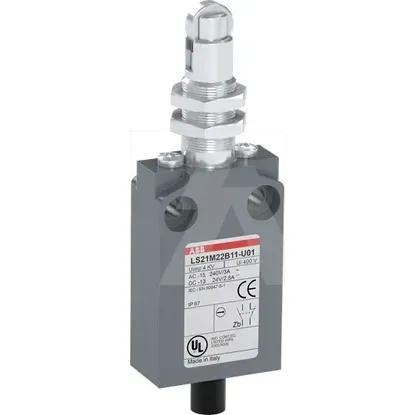

1SBV015622R2601 | LS21M22B11-U01
