Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Material housingMetal
Rated operation current Ie at DC-13, 230 V0.27A
Suitable for safety functionsNo
With status indicationNo
Coating housingPowder coating
Type of interface for safety communicationNone
Explosion safety category for gasNone
Construction type housingCuboid
Type of interfaceNone
Ambient temperature during operating-25 - 70°C
Number of contacts as normally closed contact1
Diameter sensor0mm
Rated operation current Ie at AC-15, 125 V5.5A
Output electronicNo
Forced openingNo
Rated operation current Ie at DC-13, 24 V2.8A
Height of sensor85mm
Degree of protection (IP)IP67
Number of safety auxiliary contacts0
Type of control elementPlunger
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 24 V10A
Width sensor30mm
Number of contacts as change-over contact0
Number of contacts as normally open contact1
Alignment of the control elementOther
Type of electric connectionWith cable preassembled
Degree of protection (NEMA)6
Rated operation current Ie at DC-13, 125 V0.55A
Length of sensor16mm
Switching function latchingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

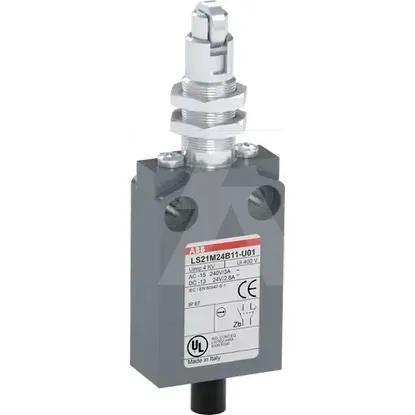

1SBV015624R2601 | LS21M24B11-U01
