Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 230 V0.27A
Material housingMetal
Suitable for safety functionsNo
Coating housingPowder coating
With status indicationNo
Type of interface for safety communicationNone
Explosion safety category for gasNone
Construction type housingCuboid
Type of electric connectionWith cable preassembled
Explosion safety category for dustNone
Output electronicNo
Degree of protection (IP)IP67
Type of interfaceNone
Forced openingNo
Number of safety auxiliary contacts0
Type of control elementPlunger
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at DC-13, 24 V2.8A
Number of contacts as change-over contact0
Rated operation current Ie at AC-15, 24 V10A
Number of contacts as normally closed contact1
Switching function latchingNo
Length of sensor29mm
Diameter sensor0mm
Height of sensor92mm
Number of contacts as normally open contact1
Width sensor30mm
Degree of protection (NEMA)6
Alignment of the control elementOther
Ambient temperature during operating-25 - 70°C
Rated operation current Ie at DC-13, 125 V0.55A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

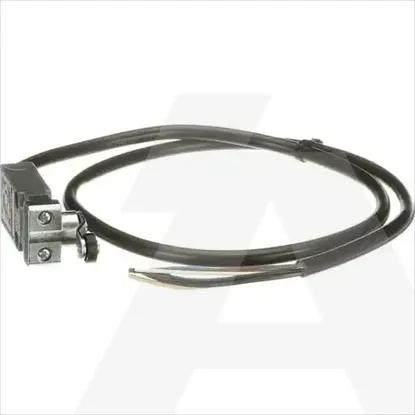

1SBV015641R2601 | LS21M41B11-U01
