Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 230 V0.27A
Suitable for safety functionsNo
Switching functionQuick-break switch
With status indicationNo
Material housingMetal
Coating housingPowder coating
Type of interface for safety communicationNone
Type of electric connectionWith cable preassembled
Forced openingNo
Output electronicNo
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at AC-15, 24 V10A
Type of control elementPlunger
Rated operation current Ie at DC-13, 24 V2.8A
Explosion safety category for dustNone
Type of interfaceNone
Number of safety auxiliary contacts0
Diameter sensor0mm
Degree of protection (IP)IP67
Explosion safety category for gasNone
Construction type housingCuboid
Width sensor30mm
Ambient temperature during operating-25 - 70°C
Switching function latchingNo
Alignment of the control elementOther
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Height of sensor92mm
Number of contacts as change-over contact0
Length of sensor16mm
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

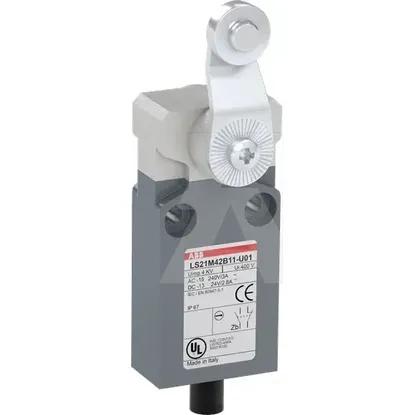

1SBV015642R2601 | LS21M42B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at AC-15, 230 V
3A
Rated operation current Ie at DC-13, 230 V
0.27A
Suitable for safety functions
Switching function
Quick-break switch
With status indication
Material housing
Metal
Coating housing
Powder coating
Type of interface for safety communication
None
Type of electric connection
With cable preassembled
Forced opening
Output electronic
Rated operation current Ie at DC-13, 125 V
0.55A
Rated operation current Ie at AC-15, 125 V
5.5A
Rated operation current Ie at AC-15, 24 V
10A
Type of control element
Plunger
Rated operation current Ie at DC-13, 24 V
2.8A
Explosion safety category for dust
None
Type of interface
None
Number of safety auxiliary contacts
0
Diameter sensor
0mm
Degree of protection (IP)
IP67
Explosion safety category for gas
None
Construction type housing
Cuboid
Width sensor
30mm
Ambient temperature during operating
-25 .. 70°C
Switching function latching
Alignment of the control element
Other
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Height of sensor
92mm
Number of contacts as change-over contact
0
Length of sensor
16mm
Degree of protection (NEMA)
6
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
