Technical specifications
Type of interface for safety communicationNone
Type of control elementPlunger
Explosion safety category for gasNone
Coating housingPowder coating
Switching functionQuick-break switch
Number of safety auxiliary contacts0
Explosion safety category for dustNone
Type of electric connectionWith cable preassembled
Rated operation current Ie at DC-13, 230 V0.27A
Forced openingNo
Material housingMetal
Rated operation current Ie at AC-15, 230 V3A
With status indicationNo
Suitable for safety functionsNo
Construction type housingCuboid
Length of sensor16mm
Number of contacts as change-over contact0
Number of contacts as normally open contact1
Alignment of the control elementOther
Diameter sensor0mm
Rated operation current Ie at AC-15, 125 V5.5A
Degree of protection (NEMA)6
Ambient temperature during operating-25 - 70°C
Number of contacts as normally closed contact1
Type of interfaceNone
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at DC-13, 24 V2.8A
Output electronicNo
Switching function latchingNo
Degree of protection (IP)IP67
Width sensor30mm
Height of sensor102mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

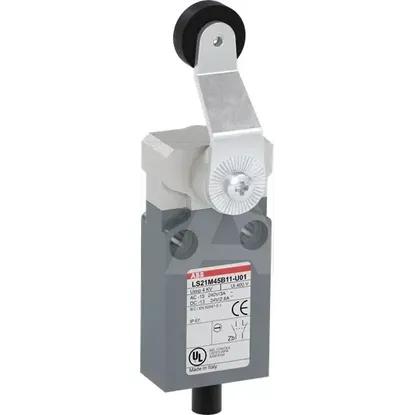

1SBV015645R2601 | LS21M45B11-U01
