Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Material housingMetal
Suitable for safety functionsNo
Switching functionQuick-break switch
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Construction type housingCuboid
Number of safety auxiliary contacts0
Type of electric connectionWith cable preassembled
Forced openingNo
With status indicationNo
Type of control elementPlunger
Coating housingPowder coating
Degree of protection (IP)IP67
Type of interface for safety communicationNone
Explosion safety category for gasNone
Explosion safety category for dustNone
Rated operation current Ie at DC-13, 24 V2.8A
Type of interfaceNone
Height of sensor102mm
Rated operation current Ie at DC-13, 125 V0.55A
Output electronicNo
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at AC-15, 125 V5.5A
Width sensor30mm
Diameter sensor0mm
Switching function latchingNo
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Length of sensor16mm
Number of contacts as normally closed contact1
Alignment of the control elementOther
Number of contacts as change-over contact0
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

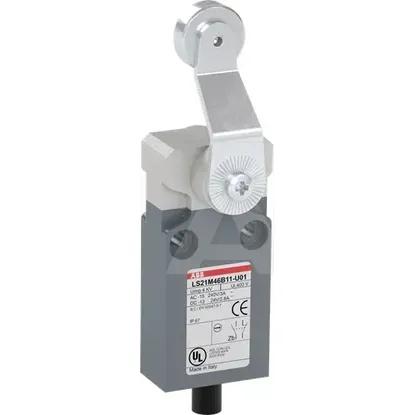

1SBV015646R2601 | LS21M46B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Material housing
Metal
Suitable for safety functions
Switching function
Quick-break switch
Rated operation current Ie at DC-13, 230 V
0.27A
Rated operation current Ie at AC-15, 230 V
3A
Construction type housing
Cuboid
Number of safety auxiliary contacts
0
Type of electric connection
With cable preassembled
Forced opening
With status indication
Type of control element
Plunger
Coating housing
Powder coating
Degree of protection (IP)
IP67
Type of interface for safety communication
None
Explosion safety category for gas
None
Explosion safety category for dust
None
Rated operation current Ie at DC-13, 24 V
2.8A
Type of interface
None
Height of sensor
102mm
Rated operation current Ie at DC-13, 125 V
0.55A
Output electronic
Rated operation current Ie at AC-15, 24 V
10A
Rated operation current Ie at AC-15, 125 V
5.5A
Width sensor
30mm
Diameter sensor
0mm
Switching function latching
Ambient temperature during operating
-25 .. 70°C
Number of contacts as normally open contact
1
Length of sensor
16mm
Number of contacts as normally closed contact
1
Alignment of the control element
Other
Number of contacts as change-over contact
0
Degree of protection (NEMA)
6
