Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Switching functionQuick-break switch
Material housingMetal
Type of interface for safety communicationNone
With status indicationNo
Rated operation current Ie at AC-15, 230 V3A
Coating housingPowder coating
Suitable for safety functionsNo
Type of electric connectionWith cable preassembled
Degree of protection (IP)IP67
Construction type housingCuboid
Explosion safety category for dustNone
Explosion safety category for gasNone
Forced openingNo
Number of safety auxiliary contacts0
Width sensor30mm
Rated operation current Ie at DC-13, 125 V0.55A
Diameter sensor0mm
Height of sensor130mm
Rated operation current Ie at DC-13, 24 V2.8A
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at AC-15, 125 V5.5A
Type of interfaceNone
Output electronicNo
Type of control elementPlunger
Number of contacts as change-over contact0
Length of sensor35mm
Number of contacts as normally open contact1
Alignment of the control elementOther
Switching function latchingNo
Ambient temperature during operating-25 - 70°C
Degree of protection (NEMA)6
Number of contacts as normally closed contact1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

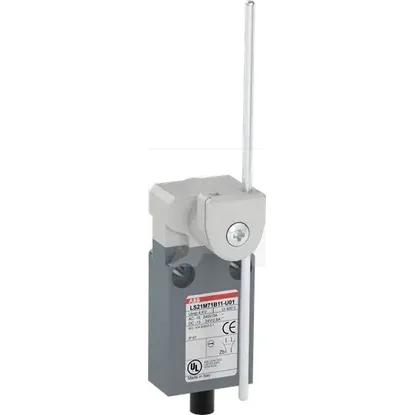

1SBV015671R2601 | LS21M71B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at DC-13, 230 V
0.27A
Switching function
Quick-break switch
Material housing
Metal
Type of interface for safety communication
None
With status indication
Rated operation current Ie at AC-15, 230 V
3A
Coating housing
Powder coating
Suitable for safety functions
Type of electric connection
With cable preassembled
Degree of protection (IP)
IP67
Construction type housing
Cuboid
Explosion safety category for dust
None
Explosion safety category for gas
None
Forced opening
Number of safety auxiliary contacts
0
Width sensor
30mm
Rated operation current Ie at DC-13, 125 V
0.55A
Diameter sensor
0mm
Height of sensor
130mm
Rated operation current Ie at DC-13, 24 V
2.8A
Rated operation current Ie at AC-15, 24 V
10A
Rated operation current Ie at AC-15, 125 V
5.5A
Type of interface
None
Output electronic
Type of control element
Plunger
Number of contacts as change-over contact
0
Length of sensor
35mm
Number of contacts as normally open contact
1
Alignment of the control element
Other
Switching function latching
Ambient temperature during operating
-25 .. 70°C
Degree of protection (NEMA)
6
Number of contacts as normally closed contact
1
