Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at DC-13, 230 V0.27A
Material housingMetal
Rated operation current Ie at AC-15, 230 V3A
Suitable for safety functionsNo
Coating housingPowder coating
With status indicationNo
Type of interface for safety communicationNone
Explosion safety category for gasNone
Construction type housingCuboid
Type of electric connectionWith cable preassembled
Explosion safety category for dustNone
Diameter sensor0mm
Rated operation current Ie at DC-13, 24 V2.8A
Degree of protection (IP)IP67
Width sensor30mm
Height of sensor182mm
Type of control elementPlunger
Output electronicNo
Number of contacts as normally open contact1
Ambient temperature during operating-25 - 70°C
Forced openingNo
Type of interfaceNone
Length of sensor16mm
Rated operation current Ie at AC-15, 24 V10A
Number of contacts as normally closed contact1
Rated operation current Ie at AC-15, 125 V5.5A
Switching function latchingNo
Number of safety auxiliary contacts0
Rated operation current Ie at DC-13, 125 V0.55A
Number of contacts as change-over contact0
Alignment of the control elementOther
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

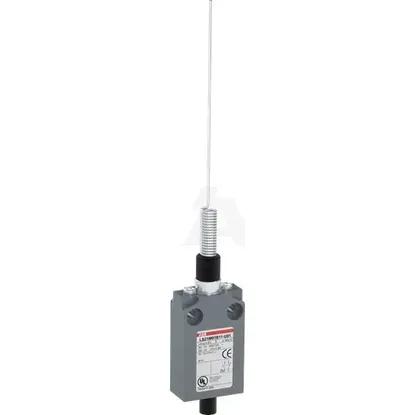

1SBV015691R2601 | LS21M91B11-U01
