Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at DC-13, 230 V0.27A
Type of electric connectionWith cable preassembled
Explosion safety category for gasNone
Construction type housingCuboid
Rated operation current Ie at DC-13, 125 V0.55A
Output electronicNo
Forced openingNo
Coating housingOther
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 230 V3A
Type of interface for safety communicationNone
Material housingPlastic
With status indicationNo
Type of control elementPlunger
Number of safety auxiliary contacts0
Width sensor30mm
Degree of protection (IP)IP67
Suitable for safety functionsNo
Type of interfaceNone
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 24 V2.8A
Rated operation current Ie at AC-15, 125 V5.5A
Height of sensor60mm
Diameter sensor0mm
Length of sensor16mm
Number of contacts as change-over contact0
Switching function latchingNo
Alignment of the control elementOther
Degree of protection (NEMA)6
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

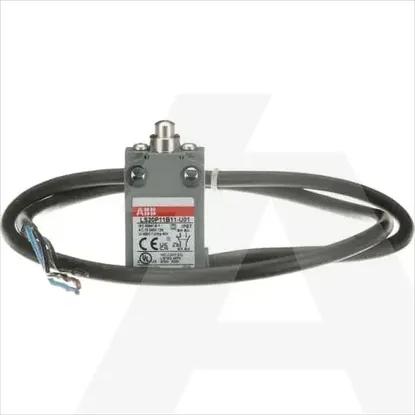

1SBV015911R3801 | LS20P11B11-U01
