Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Explosion safety category for gasNone
Suitable for safety functionsNo
With status indicationNo
Type of interface for safety communicationNone
Rated operation current Ie at AC-15, 230 V3A
Coating housingOther
Material housingPlastic
Type of electric connectionWith cable preassembled
Switching functionQuick-break switch
Rated operation current Ie at DC-13, 230 V0.27A
Degree of protection (IP)IP67
Construction type housingCuboid
Type of interfaceNone
Rated operation current Ie at AC-15, 125 V5.5A
Number of contacts as normally closed contact1
Type of control elementPlunger
Explosion safety category for dustNone
Switching function latchingNo
Rated operation current Ie at DC-13, 125 V0.55A
Forced openingNo
Height of sensor70mm
Number of contacts as normally open contact1
Degree of protection (NEMA)6
Length of sensor16mm
Number of safety auxiliary contacts0
Number of contacts as change-over contact0
Alignment of the control elementOther
Output electronicNo
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 24 V2.8A
Ambient temperature during operating-25 - 70°C
Diameter sensor0mm
Width sensor30mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

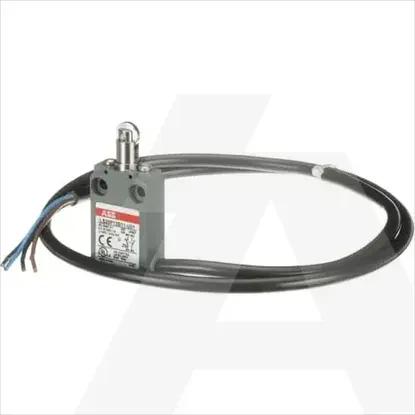

1SBV015912R3801 | LS20P12B11-U01
