Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Suitable for safety functionsNo
Material housingPlastic
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Type of electric connectionWith cable preassembled
Type of interface for safety communicationNone
Coating housingOther
With status indicationNo
Forced openingNo
Degree of protection (IP)IP67
Construction type housingCuboid
Explosion safety category for gasNone
Explosion safety category for dustNone
Type of control elementPlunger
Rated operation current Ie at DC-13, 24 V2.8A
Output electronicNo
Rated operation current Ie at AC-15, 125 V5.5A
Number of safety auxiliary contacts0
Type of interfaceNone
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 125 V0.55A
Width sensor30mm
Height of sensor70mm
Diameter sensor0mm
Length of sensor16mm
Ambient temperature during operating-25 - 70°C
Switching function latchingNo
Alignment of the control elementOther
Number of contacts as normally closed contact1
Degree of protection (NEMA)6
Number of contacts as normally open contact1
Number of contacts as change-over contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

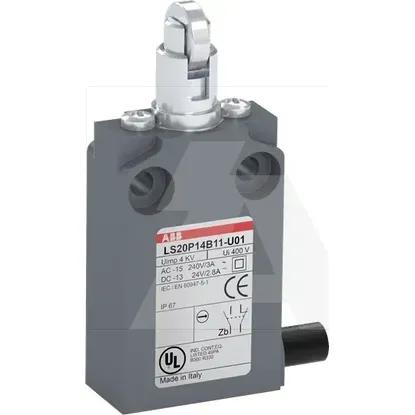

1SBV015914R3801 | LS20P14B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at DC-13, 230 V
0.27A
Suitable for safety functions
Material housing
Plastic
Switching function
Quick-break switch
Rated operation current Ie at AC-15, 230 V
3A
Type of electric connection
With cable preassembled
Type of interface for safety communication
None
Coating housing
Other
With status indication
Forced opening
Degree of protection (IP)
IP67
Construction type housing
Cuboid
Explosion safety category for gas
None
Explosion safety category for dust
None
Type of control element
Plunger
Rated operation current Ie at DC-13, 24 V
2.8A
Output electronic
Rated operation current Ie at AC-15, 125 V
5.5A
Number of safety auxiliary contacts
0
Type of interface
None
Rated operation current Ie at AC-15, 24 V
10A
Rated operation current Ie at DC-13, 125 V
0.55A
Width sensor
30mm
Height of sensor
70mm
Diameter sensor
0mm
Length of sensor
16mm
Ambient temperature during operating
-25 .. 70°C
Switching function latching
Alignment of the control element
Other
Number of contacts as normally closed contact
1
Degree of protection (NEMA)
6
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
