Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Switching functionQuick-break switch
Material housingPlastic
Rated operation current Ie at AC-15, 230 V3A
Suitable for safety functionsNo
Type of electric connectionWith cable preassembled
Height of sensor70mm
Diameter sensor0mm
Type of interfaceNone
Rated operation current Ie at DC-13, 24 V2.8A
Output electronicNo
Number of safety auxiliary contacts0
Rated operation current Ie at DC-13, 125 V0.55A
With status indicationNo
Type of control elementPlunger
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 24 V10A
Forced openingNo
Explosion safety category for gasNone
Degree of protection (IP)IP67
Type of interface for safety communicationNone
Coating housingOther
Construction type housingCuboid
Rated operation current Ie at AC-15, 125 V5.5A
Ambient temperature during operating-25 - 70°C
Width sensor30mm
Switching function latchingNo
Length of sensor16mm
Number of contacts as normally closed contact1
Alignment of the control elementOther
Degree of protection (NEMA)6
Number of contacts as normally open contact1
Number of contacts as change-over contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

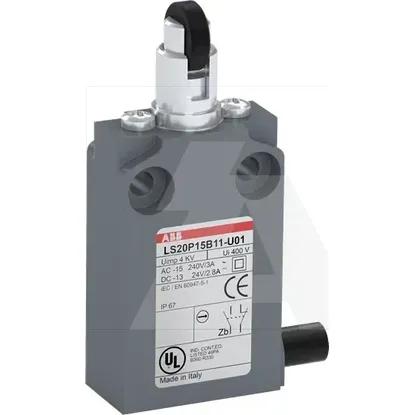

1SBV015915R3801 | LS20P15B11-U01
