Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Explosion safety category for dustNone
Material housingPlastic
Rated operation current Ie at AC-15, 230 V3A
With status indicationNo
Explosion safety category for gasNone
Suitable for safety functionsNo
Type of electric connectionWith cable preassembled
Switching functionQuick-break switch
Type of interface for safety communicationNone
Rated operation current Ie at DC-13, 230 V0.27A
Coating housingOther
Number of safety auxiliary contacts0
Degree of protection (IP)IP67
Forced openingNo
Construction type housingCuboid
Type of control elementPlunger
Rated operation current Ie at AC-15, 125 V5.5A
Output electronicNo
Type of interfaceNone
Rated operation current Ie at DC-13, 24 V2.8A
Rated operation current Ie at DC-13, 125 V0.55A
Diameter sensor0mm
Width sensor30mm
Height of sensor74mm
Length of sensor16mm
Ambient temperature during operating-25 - 70°C
Rated operation current Ie at AC-15, 24 V10A
Switching function latchingNo
Number of contacts as normally closed contact1
Degree of protection (NEMA)6
Number of contacts as normally open contact1
Number of contacts as change-over contact0
Alignment of the control elementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

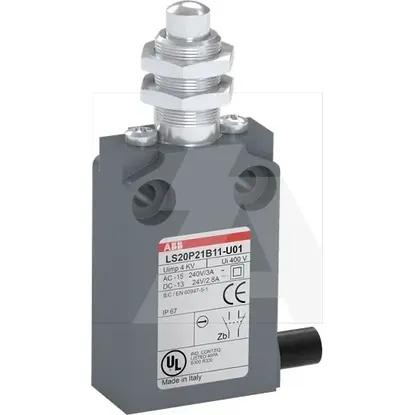

1SBV015921R3801 | LS20P21B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Explosion safety category for dust
None
Material housing
Plastic
Rated operation current Ie at AC-15, 230 V
3A
With status indication
Explosion safety category for gas
None
Suitable for safety functions
Type of electric connection
With cable preassembled
Switching function
Quick-break switch
Type of interface for safety communication
None
Rated operation current Ie at DC-13, 230 V
0.27A
Coating housing
Other
Number of safety auxiliary contacts
0
Degree of protection (IP)
IP67
Forced opening
Construction type housing
Cuboid
Type of control element
Plunger
Rated operation current Ie at AC-15, 125 V
5.5A
Output electronic
Type of interface
None
Rated operation current Ie at DC-13, 24 V
2.8A
Rated operation current Ie at DC-13, 125 V
0.55A
Diameter sensor
0mm
Width sensor
30mm
Height of sensor
74mm
Length of sensor
16mm
Ambient temperature during operating
-25 .. 70°C
Rated operation current Ie at AC-15, 24 V
10A
Switching function latching
Number of contacts as normally closed contact
1
Degree of protection (NEMA)
6
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Alignment of the control element
Other
