Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Construction type housingCuboid
Type of interface for safety communicationNone
Type of electric connectionWith cable preassembled
With status indicationNo
Suitable for safety functionsNo
Rated operation current Ie at DC-13, 230 V0.27A
Material housingPlastic
Coating housingOther
Switching functionQuick-break switch
Forced openingNo
Rated operation current Ie at AC-15, 230 V3A
Degree of protection (IP)IP67
Explosion safety category for gasNone
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at DC-13, 125 V0.55A
Alignment of the control elementOther
Length of sensor16mm
Output electronicNo
Type of control elementPlunger
Width sensor30mm
Number of contacts as normally open contact1
Diameter sensor0mm
Ambient temperature during operating-25 - 70°C
Number of contacts as normally closed contact1
Rated operation current Ie at AC-15, 24 V10A
Number of safety auxiliary contacts0
Type of interfaceNone
Number of contacts as change-over contact0
Height of sensor85mm
Rated operation current Ie at DC-13, 24 V2.8A
Switching function latchingNo
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

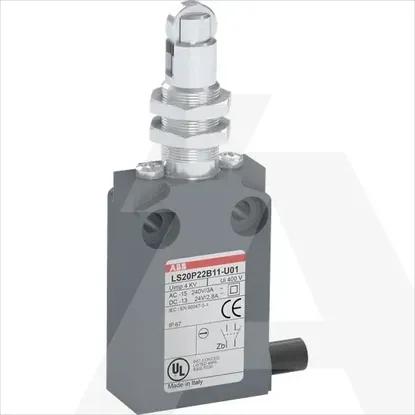

1SBV015922R3801 | LS20P22B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Construction type housing
Cuboid
Type of interface for safety communication
None
Type of electric connection
With cable preassembled
With status indication
Suitable for safety functions
Rated operation current Ie at DC-13, 230 V
0.27A
Material housing
Plastic
Coating housing
Other
Switching function
Quick-break switch
Forced opening
Rated operation current Ie at AC-15, 230 V
3A
Degree of protection (IP)
IP67
Explosion safety category for gas
None
Explosion safety category for dust
None
Rated operation current Ie at AC-15, 125 V
5.5A
Rated operation current Ie at DC-13, 125 V
0.55A
Alignment of the control element
Other
Length of sensor
16mm
Output electronic
Type of control element
Plunger
Width sensor
30mm
Number of contacts as normally open contact
1
Diameter sensor
0mm
Ambient temperature during operating
-25 .. 70°C
Number of contacts as normally closed contact
1
Rated operation current Ie at AC-15, 24 V
10A
Number of safety auxiliary contacts
0
Type of interface
None
Number of contacts as change-over contact
0
Height of sensor
85mm
Rated operation current Ie at DC-13, 24 V
2.8A
Switching function latching
Degree of protection (NEMA)
6
