Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Material housingPlastic
Switching functionQuick-break switch
Suitable for safety functionsNo
Coating housingOther
Type of interface for safety communicationNone
Type of electric connectionWith cable preassembled
With status indicationNo
Forced openingNo
Rated operation current Ie at AC-15, 24 V10A
Degree of protection (IP)IP67
Explosion safety category for dustNone
Rated operation current Ie at DC-13, 24 V2.8A
Number of safety auxiliary contacts0
Type of control elementPlunger
Height of sensor85mm
Explosion safety category for gasNone
Degree of protection (NEMA)6
Number of contacts as normally open contact1
Alignment of the control elementOther
Ambient temperature during operating-25 - 70°C
Type of interfaceNone
Switching function latchingNo
Output electronicNo
Rated operation current Ie at DC-13, 125 V0.55A
Number of contacts as change-over contact0
Construction type housingCuboid
Number of contacts as normally closed contact1
Width sensor30mm
Rated operation current Ie at AC-15, 125 V5.5A
Length of sensor16mm
Diameter sensor0mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

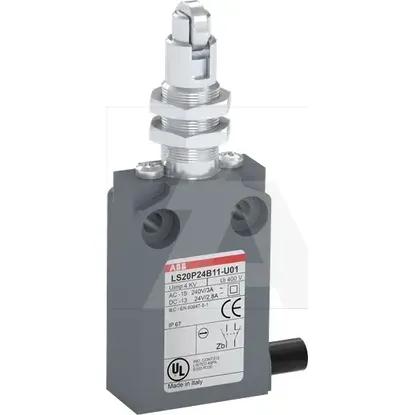

1SBV015924R3801 | LS20P24B11-U01
