Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Material housingPlastic
Coating housingOther
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Suitable for safety functionsNo
Switching functionQuick-break switch
With status indicationNo
Construction type housingCuboid
Explosion safety category for dustNone
Degree of protection (IP)IP67
Type of interface for safety communicationNone
Type of electric connectionWith cable preassembled
Explosion safety category for gasNone
Type of interfaceNone
Rated operation current Ie at AC-15, 24 V10A
Output electronicNo
Type of control elementPlunger
Rated operation current Ie at AC-15, 125 V5.5A
Height of sensor92mm
Number of contacts as change-over contact0
Forced openingNo
Diameter sensor0mm
Ambient temperature during operating-25 - 70°C
Length of sensor29mm
Alignment of the control elementOther
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at DC-13, 24 V2.8A
Number of safety auxiliary contacts0
Degree of protection (NEMA)6
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Switching function latchingNo
Width sensor30mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

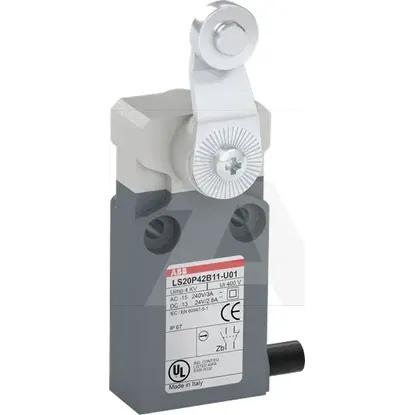

1SBV015942R3801 | LS20P42B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Material housing
Plastic
Coating housing
Other
Rated operation current Ie at DC-13, 230 V
0.27A
Rated operation current Ie at AC-15, 230 V
3A
Suitable for safety functions
Switching function
Quick-break switch
With status indication
Construction type housing
Cuboid
Explosion safety category for dust
None
Degree of protection (IP)
IP67
Type of interface for safety communication
None
Type of electric connection
With cable preassembled
Explosion safety category for gas
None
Type of interface
None
Rated operation current Ie at AC-15, 24 V
10A
Output electronic
Type of control element
Plunger
Rated operation current Ie at AC-15, 125 V
5.5A
Height of sensor
92mm
Number of contacts as change-over contact
0
Forced opening
Diameter sensor
0mm
Ambient temperature during operating
-25 .. 70°C
Length of sensor
29mm
Alignment of the control element
Other
Rated operation current Ie at DC-13, 125 V
0.55A
Rated operation current Ie at DC-13, 24 V
2.8A
Number of safety auxiliary contacts
0
Degree of protection (NEMA)
6
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Switching function latching
Width sensor
30mm
