Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Material housingPlastic
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Switching functionQuick-break switch
Coating housingOther
Explosion safety category for gasNone
Construction type housingCuboid
With status indicationNo
Suitable for safety functionsNo
Forced openingNo
Explosion safety category for dustNone
Degree of protection (IP)IP67
Type of interface for safety communicationNone
Type of electric connectionWith cable preassembled
Output electronicNo
Number of safety auxiliary contacts0
Type of interfaceNone
Type of control elementPlunger
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 24 V10A
Switching function latchingNo
Alignment of the control elementOther
Width sensor30mm
Number of contacts as normally open contact1
Length of sensor29mm
Rated operation current Ie at DC-13, 24 V2.8A
Diameter sensor0mm
Number of contacts as normally closed contact1
Ambient temperature during operating-25 - 70°C
Height of sensor102mm
Degree of protection (NEMA)6
Number of contacts as change-over contact0
Rated operation current Ie at AC-15, 125 V5.5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

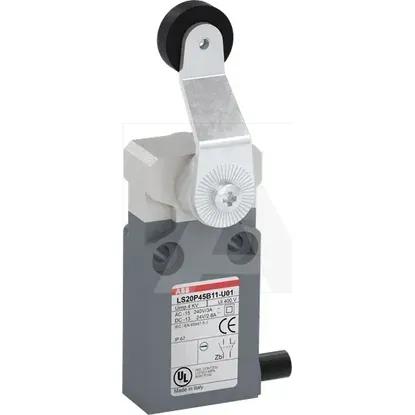

1SBV015945R3801 | LS20P45B11-U01
