Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Explosion safety category for gasNone
With status indicationNo
Switching functionQuick-break switch
Suitable for safety functionsNo
Material housingPlastic
Type of interface for safety communicationNone
Explosion safety category for dustNone
Construction type housingCuboid
Coating housingOther
Type of electric connectionWith cable preassembled
Type of interfaceNone
Forced openingNo
Number of safety auxiliary contacts0
Degree of protection (IP)IP67
Type of control elementPlunger
Height of sensor102mm
Rated operation current Ie at DC-13, 125 V0.55A
Number of contacts as normally closed contact1
Rated operation current Ie at DC-13, 24 V2.8A
Output electronicNo
Rated operation current Ie at AC-15, 125 V5.5A
Degree of protection (NEMA)6
Number of contacts as change-over contact0
Rated operation current Ie at AC-15, 24 V10A
Diameter sensor0mm
Alignment of the control elementOther
Width sensor30mm
Number of contacts as normally open contact1
Switching function latchingNo
Ambient temperature during operating-25 - 70°C
Length of sensor29mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

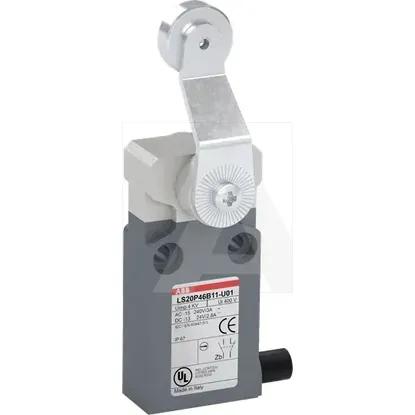

1SBV015946R3801 | LS20P46B11-U01
