Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Material housingPlastic
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 230 V0.27A
Suitable for safety functionsNo
Coating housingOther
Type of interface for safety communicationNone
With status indicationNo
Explosion safety category for dustNone
Degree of protection (IP)IP67
Rated operation current Ie at AC-15, 125 V5.5A
Construction type housingCuboid
Rated operation current Ie at AC-15, 24 V10A
Type of interfaceNone
Output electronicNo
Switching function latchingNo
Type of control elementPlunger
Width sensor30mm
Forced openingNo
Ambient temperature during operating-25 - 70°C
Length of sensor35mm
Height of sensor130mm
Type of electric connectionWith cable preassembled
Rated operation current Ie at DC-13, 125 V0.55A
Explosion safety category for gasNone
Number of safety auxiliary contacts0
Rated operation current Ie at DC-13, 24 V2.8A
Diameter sensor0mm
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Number of contacts as normally open contact1
Alignment of the control elementOther
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

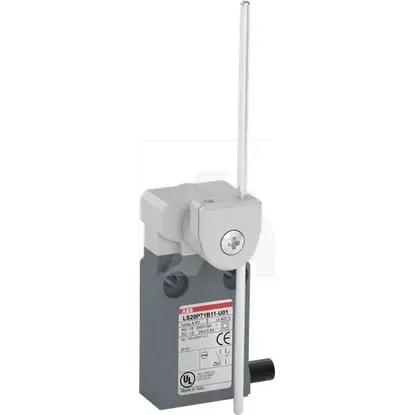

1SBV015971R3801 | LS20P71B11-U01
