Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 230 V3A
Switching functionQuick-break switch
With status indicationNo
Coating housingOther
Material housingPlastic
Suitable for safety functionsNo
Explosion safety category for gasNone
Explosion safety category for dustNone
Type of interface for safety communicationNone
Forced openingNo
Type of electric connectionWith cable preassembled
Rated operation current Ie at AC-15, 24 V10A
Switching function latchingNo
Output electronicNo
Type of control elementPlunger
Construction type housingCuboid
Height of sensor182mm
Type of interfaceNone
Ambient temperature during operating-25 - 70°C
Number of safety auxiliary contacts0
Degree of protection (IP)IP67
Rated operation current Ie at AC-15, 125 V5.5A
Diameter sensor0mm
Length of sensor16mm
Rated operation current Ie at DC-13, 24 V2.8A
Alignment of the control elementOther
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Rated operation current Ie at DC-13, 125 V0.55A
Number of contacts as change-over contact0
Width sensor30mm
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

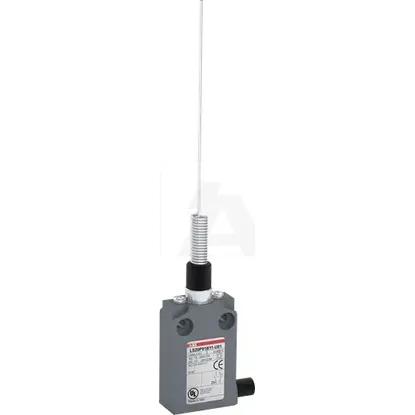

1SBV015991R3801 | LS20P91B11-U01
