Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 230 V0.27A
Switching functionQuick-break switch
Material housingPlastic
Height of sensor162mm
Type of electric connectionWith cable preassembled
With status indicationNo
Type of interfaceNone
Length of sensor16mm
Explosion safety category for gasNone
Width sensor30mm
Type of interface for safety communicationNone
Diameter sensor0mm
Output electronicNo
Type of control elementPlunger
Rated operation current Ie at DC-13, 125 V0.55A
Coating housingOther
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at AC-15, 125 V5.5A
Construction type housingCuboid
Rated operation current Ie at DC-13, 24 V2.8A
Suitable for safety functionsNo
Number of safety auxiliary contacts0
Forced openingNo
Number of contacts as normally closed contact1
Ambient temperature during operating-25 - 70°C
Degree of protection (IP)IP67
Switching function latchingNo
Degree of protection (NEMA)6
Number of contacts as change-over contact0
Alignment of the control elementOther
Number of contacts as normally open contact1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

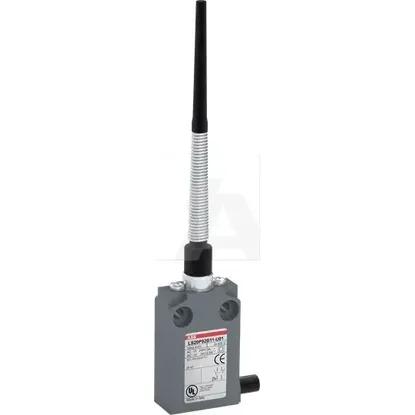

1SBV015992R3801 | LS20P92B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at AC-15, 230 V
3A
Rated operation current Ie at DC-13, 230 V
0.27A
Switching function
Quick-break switch
Material housing
Plastic
Height of sensor
162mm
Type of electric connection
With cable preassembled
With status indication
Type of interface
None
Length of sensor
16mm
Explosion safety category for gas
None
Width sensor
30mm
Type of interface for safety communication
None
Diameter sensor
0mm
Output electronic
Type of control element
Plunger
Rated operation current Ie at DC-13, 125 V
0.55A
Coating housing
Other
Explosion safety category for dust
None
Rated operation current Ie at AC-15, 24 V
10A
Rated operation current Ie at AC-15, 125 V
5.5A
Construction type housing
Cuboid
Rated operation current Ie at DC-13, 24 V
2.8A
Suitable for safety functions
Number of safety auxiliary contacts
0
Forced opening
Number of contacts as normally closed contact
1
Ambient temperature during operating
-25 .. 70°C
Degree of protection (IP)
IP67
Switching function latching
Degree of protection (NEMA)
6
Number of contacts as change-over contact
0
Alignment of the control element
Other
Number of contacts as normally open contact
1
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
