Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Suitable for safety functionsNo
Coating housingOther
Explosion safety category for gasNone
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 230 V0.27A
Number of safety auxiliary contacts0
Type of electric connectionWith cable preassembled
Type of interface for safety communicationNone
Switching functionQuick-break switch
Forced openingNo
Degree of protection (IP)IP67
Explosion safety category for dustNone
With status indicationNo
Material housingPlastic
Construction type housingCuboid
Type of control elementPlunger
Rated operation current Ie at AC-15, 24 V10A
Output electronicNo
Type of interfaceNone
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 125 V5.5A
Height of sensor70mm
Width sensor30mm
Rated operation current Ie at DC-13, 24 V2.8A
Number of contacts as normally open contact1
Alignment of the control elementOther
Number of contacts as normally closed contact1
Length of sensor16mm
Ambient temperature during operating-25 - 70°C
Switching function latchingNo
Number of contacts as change-over contact0
Degree of protection (NEMA)6
Diameter sensor0mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

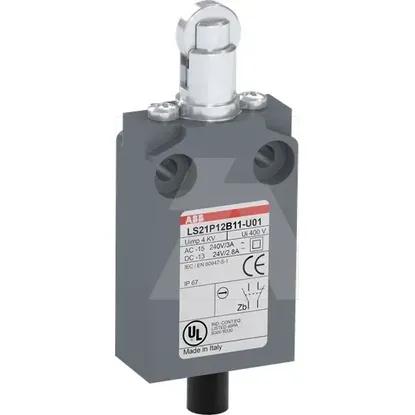

1SBV016012R3801 | LS21P12B11-U01
