Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Coating housingOther
Suitable for safety functionsNo
Type of electric connectionWith cable preassembled
Construction type housingCuboid
Explosion safety category for gasNone
Type of interface for safety communicationNone
With status indicationNo
Explosion safety category for dustNone
Rated operation current Ie at DC-13, 230 V0.27A
Forced openingNo
Number of safety auxiliary contacts0
Material housingPlastic
Switching functionQuick-break switch
Type of control elementPlunger
Degree of protection (IP)IP67
Rated operation current Ie at AC-15, 230 V3A
Output electronicNo
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 24 V10A
Type of interfaceNone
Width sensor30mm
Rated operation current Ie at AC-15, 125 V5.5A
Diameter sensor0mm
Height of sensor85mm
Rated operation current Ie at DC-13, 24 V2.8A
Number of contacts as change-over contact0
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Degree of protection (NEMA)6
Alignment of the control elementOther
Switching function latchingNo
Length of sensor16mm
Ambient temperature during operating-25 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

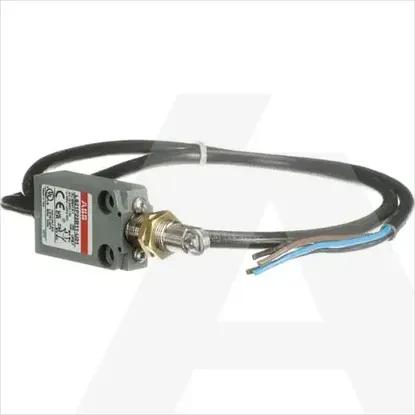

1SBV016022R3801 | LS21P22B11-U01
