Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Suitable for safety functionsNo
With status indicationNo
Rated operation current Ie at AC-15, 230 V3A
Coating housingOther
Material housingPlastic
Rated operation current Ie at DC-13, 230 V0.27A
Type of electric connectionWith cable preassembled
Type of interface for safety communicationNone
Forced openingNo
Degree of protection (IP)IP67
Number of safety auxiliary contacts0
Construction type housingCuboid
Type of interfaceNone
Explosion safety category for dustNone
Explosion safety category for gasNone
Rated operation current Ie at AC-15, 24 V10A
Output electronicNo
Rated operation current Ie at DC-13, 125 V0.55A
Switching function latchingNo
Rated operation current Ie at AC-15, 125 V5.5A
Width sensor30mm
Diameter sensor0mm
Alignment of the control elementOther
Number of contacts as change-over contact0
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Height of sensor85mm
Rated operation current Ie at DC-13, 24 V2.8A
Length of sensor16mm
Number of contacts as normally closed contact1
Degree of protection (NEMA)6
Type of control elementPlunger
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

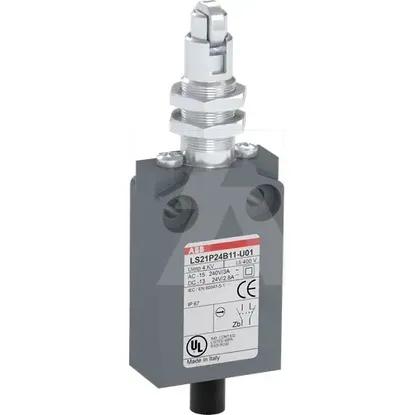

1SBV016024R3801 | LS21P24B11-U01
