Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Explosion safety category for dustNone
Type of interface for safety communicationNone
Construction type housingCuboid
Rated operation current Ie at AC-15, 230 V3A
Explosion safety category for gasNone
Switching functionQuick-break switch
Coating housingOther
Material housingPlastic
With status indicationNo
Suitable for safety functionsNo
Rated operation current Ie at DC-13, 230 V0.27A
Type of electric connectionWith cable preassembled
Number of safety auxiliary contacts0
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at DC-13, 24 V2.8A
Diameter sensor0mm
Type of control elementPlunger
Ambient temperature during operating-25 - 70°C
Rated operation current Ie at AC-15, 24 V10A
Output electronicNo
Type of interfaceNone
Switching function latchingNo
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Rated operation current Ie at DC-13, 125 V0.55A
Length of sensor29mm
Forced openingNo
Number of contacts as change-over contact0
Alignment of the control elementOther
Degree of protection (NEMA)6
Degree of protection (IP)IP67
Width sensor30mm
Height of sensor102mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

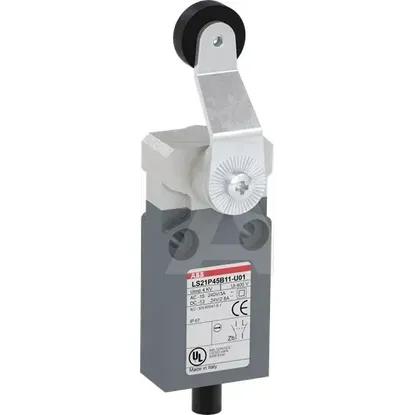

1SBV016045R3801 | LS21P45B11-U01
