Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 24 V2.8A
Rated operation current Ie at DC-13, 230 V0.27A
Type of control elementPlunger
Explosion safety category for gasNone
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at DC-13, 125 V0.55A
Construction type housingCuboid
Type of interfaceNone
Type of interface for safety communicationNone
Degree of protection (IP)IP67
Switching functionQuick-break switch
Suitable for safety functionsNo
Explosion safety category for dustNone
Type of electric connectionWith cable preassembled
Output electronicNo
Material housingPlastic
Forced openingNo
Rated operation current Ie at AC-15, 230 V3A
Coating housingOther
Number of safety auxiliary contacts0
Rated operation current Ie at AC-15, 24 V10A
With status indicationNo
Number of contacts as normally open contact1
Diameter sensor0mm
Ambient temperature during operating-25 - 70°C
Height of sensor102mm
Alignment of the control elementOther
Number of contacts as change-over contact0
Degree of protection (NEMA)6
Number of contacts as normally closed contact1
Width sensor30mm
Switching function latchingNo
Length of sensor29mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

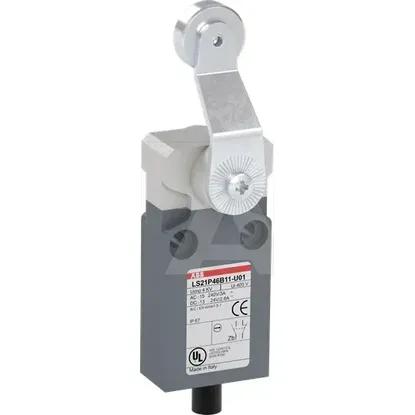

1SBV016046R3801 | LS21P46B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at DC-13, 24 V
2.8A
Rated operation current Ie at DC-13, 230 V
0.27A
Type of control element
Plunger
Explosion safety category for gas
None
Rated operation current Ie at AC-15, 125 V
5.5A
Rated operation current Ie at DC-13, 125 V
0.55A
Construction type housing
Cuboid
Type of interface
None
Type of interface for safety communication
None
Degree of protection (IP)
IP67
Switching function
Quick-break switch
Suitable for safety functions
Explosion safety category for dust
None
Type of electric connection
With cable preassembled
Output electronic
Material housing
Plastic
Forced opening
Rated operation current Ie at AC-15, 230 V
3A
Coating housing
Other
Number of safety auxiliary contacts
0
Rated operation current Ie at AC-15, 24 V
10A
With status indication
Number of contacts as normally open contact
1
Diameter sensor
0mm
Ambient temperature during operating
-25 .. 70°C
Height of sensor
102mm
Alignment of the control element
Other
Number of contacts as change-over contact
0
Degree of protection (NEMA)
6
Number of contacts as normally closed contact
1
Width sensor
30mm
Switching function latching
Length of sensor
29mm
