Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Material housingPlastic
Rated operation current Ie at DC-13, 230 V0.27A
Suitable for safety functionsNo
Coating housingOther
Rated operation current Ie at AC-15, 230 V3A
Switching functionQuick-break switch
Forced openingNo
Rated operation current Ie at AC-15, 125 V5.5A
Rated operation current Ie at DC-13, 125 V0.55A
Degree of protection (IP)IP67
With status indicationNo
Type of control elementPlunger
Output electronicNo
Type of interface for safety communicationNone
Explosion safety category for gasNone
Construction type housingCuboid
Type of electric connectionWith cable preassembled
Number of safety auxiliary contacts0
Rated operation current Ie at AC-15, 24 V10A
Height of sensor130mm
Diameter sensor0mm
Type of interfaceNone
Explosion safety category for dustNone
Width sensor30mm
Rated operation current Ie at DC-13, 24 V2.8A
Number of contacts as normally open contact1
Number of contacts as change-over contact0
Ambient temperature during operating-25 - 70°C
Switching function latchingNo
Length of sensor35mm
Number of contacts as normally closed contact1
Degree of protection (NEMA)6
Alignment of the control elementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

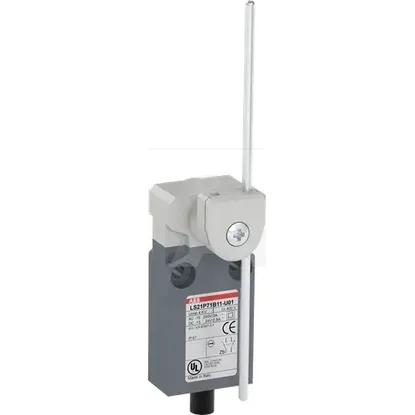

1SBV016071R3801 | LS21P71B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Material housing
Plastic
Rated operation current Ie at DC-13, 230 V
0.27A
Suitable for safety functions
Coating housing
Other
Rated operation current Ie at AC-15, 230 V
3A
Switching function
Quick-break switch
Forced opening
Rated operation current Ie at AC-15, 125 V
5.5A
Rated operation current Ie at DC-13, 125 V
0.55A
Degree of protection (IP)
IP67
With status indication
Type of control element
Plunger
Output electronic
Type of interface for safety communication
None
Explosion safety category for gas
None
Construction type housing
Cuboid
Type of electric connection
With cable preassembled
Number of safety auxiliary contacts
0
Rated operation current Ie at AC-15, 24 V
10A
Height of sensor
130mm
Diameter sensor
0mm
Type of interface
None
Explosion safety category for dust
None
Width sensor
30mm
Rated operation current Ie at DC-13, 24 V
2.8A
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Ambient temperature during operating
-25 .. 70°C
Switching function latching
Length of sensor
35mm
Number of contacts as normally closed contact
1
Degree of protection (NEMA)
6
Alignment of the control element
Other
