Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Type of interface for safety communicationNone
Rated operation current Ie at AC-15, 230 V3A
Switching functionQuick-break switch
Suitable for safety functionsNo
Material housingPlastic
Rated operation current Ie at DC-13, 230 V0.27A
Coating housingOther
With status indicationNo
Type of electric connectionWith cable preassembled
Degree of protection (IP)IP67
Construction type housingCuboid
Explosion safety category for gasNone
Type of control elementPlunger
Number of safety auxiliary contacts0
Forced openingNo
Explosion safety category for dustNone
Ambient temperature during operating-25 - 70°C
Width sensor30mm
Rated operation current Ie at AC-15, 24 V10A
Rated operation current Ie at DC-13, 24 V2.8A
Alignment of the control elementOther
Length of sensor16mm
Switching function latchingNo
Type of interfaceNone
Number of contacts as change-over contact0
Height of sensor182mm
Number of contacts as normally closed contact1
Diameter sensor0mm
Degree of protection (NEMA)6
Rated operation current Ie at DC-13, 125 V0.55A
Number of contacts as normally open contact1
Output electronicNo
Rated operation current Ie at AC-15, 125 V5.5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

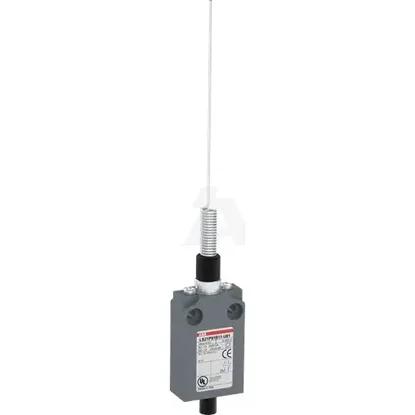

1SBV016091R3801 | LS21P91B11-U01
