Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V3A
Rated operation current Ie at DC-13, 24 V2.8A
With status indicationNo
Output electronicNo
Type of control elementPlunger
Diameter sensor0mm
Rated operation current Ie at DC-13, 125 V0.55A
Width sensor30mm
Length of sensor16mm
Construction type housingCuboid
Rated operation current Ie at AC-15, 125 V5.5A
Height of sensor162mm
Number of safety auxiliary contacts0
Explosion safety category for dustNone
Rated operation current Ie at AC-15, 24 V10A
Forced openingNo
Type of interface for safety communicationNone
Material housingPlastic
Rated operation current Ie at DC-13, 230 V0.27A
Coating housingOther
Suitable for safety functionsNo
Type of electric connectionWith cable preassembled
Explosion safety category for gasNone
Switching function latchingNo
Degree of protection (IP)IP67
Type of interfaceNone
Alignment of the control elementOther
Number of contacts as normally closed contact1
Ambient temperature during operating-25 - 70°C
Degree of protection (NEMA)6
Number of contacts as change-over contact0
Number of contacts as normally open contact1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

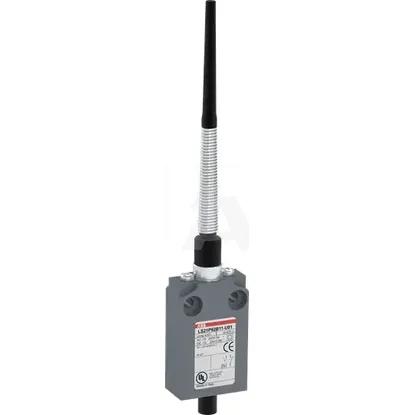

1SBV016092R3801 | LS21P92B11-U01
