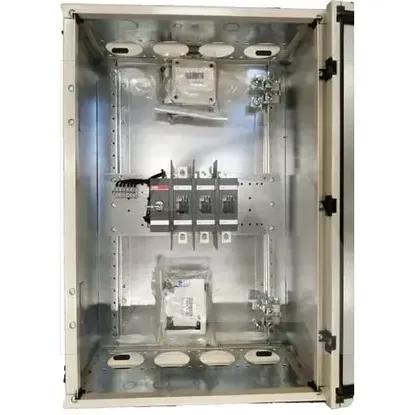

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height600mm
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu250A
Number of auxiliary contacts as normally closed contact1
Rated operating voltage1000 - 1000V
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact2
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Type of control elementLong turning handle
Version as safety switchYes
Version as maintenance-/service switchYes
Depth230mm
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V-kW
Motor drive integratedNo
InterlockableYes
Number of poles3
Width400mm
Version as main switchYes
Number of switches1
Rated operation power at AC-23, 400 V132kW
Rated short-time withstand current lcw8kA
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V250A
Suitable for intermediate mountingNo
Motor drive optionalNo
Voltage release optionalNo
Degree of protection (NEMA)Other
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V-A
Suitable for floor mountingNo
Switching power at 400 V132kW
Suitable for distribution board installationYes
Colour control elementRed
With pre-assembled cablingNo
Max. rated operation voltage Ue AC1000V
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022742R3530 | OT250KTRR3AZ
