Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width400mm
Width in number of modular spacings-
Number of poles3
Height1000mm
Number of auxiliary contacts as normally closed contact1
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Depth230mm
InterlockableYes
Number of switches1
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact2
Type of control elementLong turning handle
Version as main switchYes
Version as safety switchYes
Rated operation power at AC-23, 400 V315kW
Version as maintenance-/service switchYes
Rated short-time withstand current lcw20kA
Rated permanent current Iu570A
Colour control elementRed
Version as emergency stop installationNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
With pre-assembled cablingNo
Max. rated operation voltage Ue AC1000V
Degree of protection (NEMA)Other
Version as reversing switchNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V315kW
Rated permanent current at AC-23, 400 V570A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

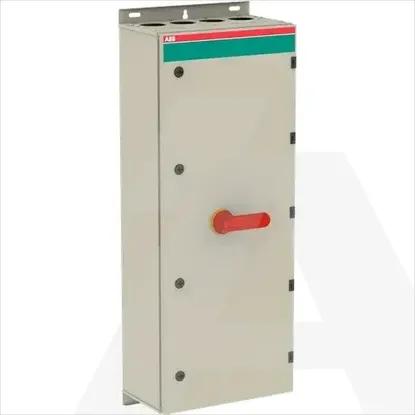

1SCA022742R3880 | OT630KTRR3AZ
