Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width305mm
Height185mm
Rated permanent current Iu-A
Number of auxiliary contacts as normally closed contact0
Depth203mm
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq-kA
InterlockableYes
Motor drive integratedNo
Width in number of modular spacings-
Number of poles4
Number of switches1
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V-kW
Type of control elementLong turning handle
Colour control elementBlack
Version as safety switchNo
Suitable for floor mountingNo
Version as emergency stop installationNo
Rated short-time withstand current lcw15kA
Motor drive optionalNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V400A
Device constructionBuilt-in device plug-in technique
Voltage release optionalNo
Version as reversing switchNo
Switching power at 400 V-kW
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V400A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

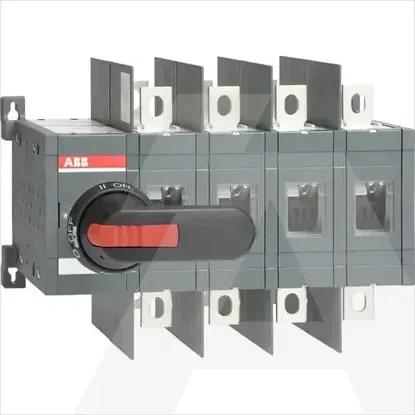

1SCA022771R2300 | OT400U04CP
