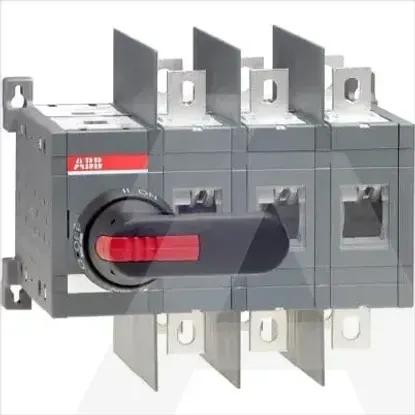

1SCA022771R2810 | OT400U03CP
Code: 2001257
ManufacturerABB
Catalog number1SCA022771R2810
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019251707
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width251mm
Height185mm
Number of auxiliary contacts as normally closed contact0
Depth203mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
InterlockableYes
Degree of protection (IP), front sideIP20
Motor drive integratedNo
Number of switches1
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Rated short-time withstand current lcw15kA
Rated operation power at AC-23, 400 V-kW
Version as safety switchNo
Colour control elementBlack
Version as emergency stop installationNo
Version as main switchYes
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Motor drive optionalNo
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Version as reversing switchNo
Rated permanent current at AC-21, 400 V400A
Switching power at 400 V-kW
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V400A
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
