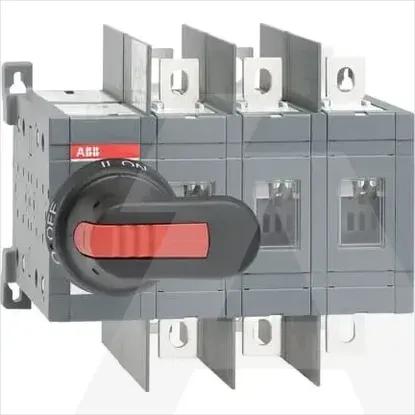

1SCA022771R5910 | OT200U03CP
Code: 2001258
ManufacturerABB
Catalog number1SCA022771R5910
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019251783
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width194mm
Rated operation power at AC-3, 400 V-kW
Height150mm
Depth160mm
InterlockableYes
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings-
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Rated operating voltage1000 - 1000V
Number of switches1
Degree of protection (IP), front sideIP20
Rated operation power at AC-23, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Type of control elementLong turning handle
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Suitable for distribution board installationYes
Colour control elementBlack
Suitable for front mounting centreNo
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V200A
Motor drive optionalNo
Voltage release optionalNo
Version as reversing switchNo
Device constructionBuilt-in device plug-in technique
Suitable for intermediate mountingNo
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V200A
Switching power at 400 V-kW
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
