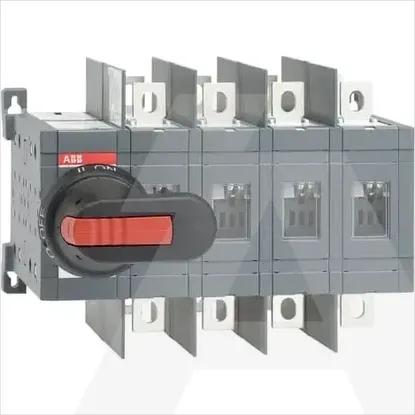

1SCA022771R6210 | OT200U04CP
Code: 2001259
ManufacturerABB
Catalog number1SCA022771R6210
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019251806
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Height150mm
Depth160mm
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
InterlockableYes
Width237mm
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
Number of switches1
Rated operation power at AC-23, 400 V-kW
Type of control elementLong turning handle
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Suitable for distribution board installationYes
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Colour control elementBlack
Rated short-time withstand current lcw8kA
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V200A
Device constructionBuilt-in device plug-in technique
Suitable for floor mountingNo
With pre-assembled cablingNo
Switching power at 400 V-kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V200A
Degree of protection (NEMA)1
Version as reversing switchNo
Suitable for intermediate mountingNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
